BOCA and Non-BOCA F-Track Bolt and Wing Nut Hardware Set

$0.69
In Stock
add to my order



DESCRIPTION

The F-Track Bolt and Wing Nut Set is designed for securing hurricane panels to standard F-track systems. This simple but essential fastening set allows panels to be quickly installed and removed while maintaining a strong, secure hold during storm conditions.

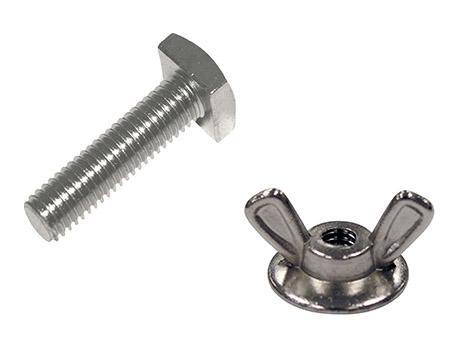

Each set includes a square head track bolt and a wing nut, working together to lock hurricane panels firmly into the F-track. The square base of the bolt slides directly into the track, allowing for easy positioning and adjustment before tightening.

Florida Building Code/Non-BOCA

Requires a minimum of one hardware set every 12 inches, providing reliable panel attachment while maintaining standard code compliance for most applications.

BOCA Standard

Requires one hardware set every 6 inches, offering tighter spacing for increased strength and improved performance in higher wind conditions.

INSTALLATION OVERVIEW

  1. Slide the square head (back end) of the bolt into the F-track
  2. Position the hurricane panel in place
  3. Tighten using the wing nut to secure the panel firmly
FEATURES

  • Designed specifically for F-track hurricane panel systems
  • Easy slide-in square head bolt design for fast installation
  • Wing nut allows quick tightening and removal without tools
  • Secure fastening for hurricane shutter and panel applications
  • Reusable hardware for seasonal storm protection systems
  • Compatible with standard aluminum and steel F-tracks
SPECIFICATIONS

  • Product Type: F-track hurricane panel fastening set
  • Fastener Size: 1/4-20 wide base bolt
  • Application: Hurricane shutter and panel securing system
  • Compatibility: Standard F-track systems
  • Material Use: Concrete/masonry mounted track systems (via panel system)
  • Installation Method: Slide-in bolt with manual wing nut tightening

Code Spacing Requirements:

  • Florida Building Code/Non-BOCA: Minimum hardware set every 12 inches
  • BOCA Standard: Hardware set every 6 inches
HOW TO ORDER

Florida Building Code Formula/Non-BOCA:

  • Count full + half panels
  • Add 1
  • Formula: (Number of panels) + 1 = Quantity needed

BOCA Standard Formula:

  • Count full panels × 2
  • Add half panels
  • Add 1
  • Formula: (Full panels × 2) + (Half panels) + 1 = Quantity needed

Optional Reinforcement Upgrade:

For increased strength, you may choose to double up hardware sets at both ends of each window for additional anchoring security.

INCLUDED

  • (1) Square head track bolt
  • (1) Wing nut
