BOCA and Non-BOCA Vertical Door Hardware - Hurricane Shutter Installation Hardware

BOCA_Non-BOCA Hurricane Shutter, Door Hardware (35215)
Concrete Screw Anchor
Square Head Track Bolt
Wing Nut
Sidewalk Bolt
Machine Screw Anchor
default image
Original Price: $6.00
Sale Price: $2.50
In Stock
add to my order

DESCRIPTION

This vertical door installation hardware set is designed for securing hurricane shutters and panels on door openings using either BOCA or non-BOCA compliant configurations. The system provides a complete fastening solution for mounting and securing hurricane panels using a combination of track hardware and anchoring components.

Each set includes a set of specialized fasteners that allow for secure installation of H-track and reverse F-track systems, ensuring strong attachment to both concrete and structural wall surfaces. Depending on your setup, the set can be used with a standard Reverse F Track or paired with a Reverse Studded Angle for simplified installation.

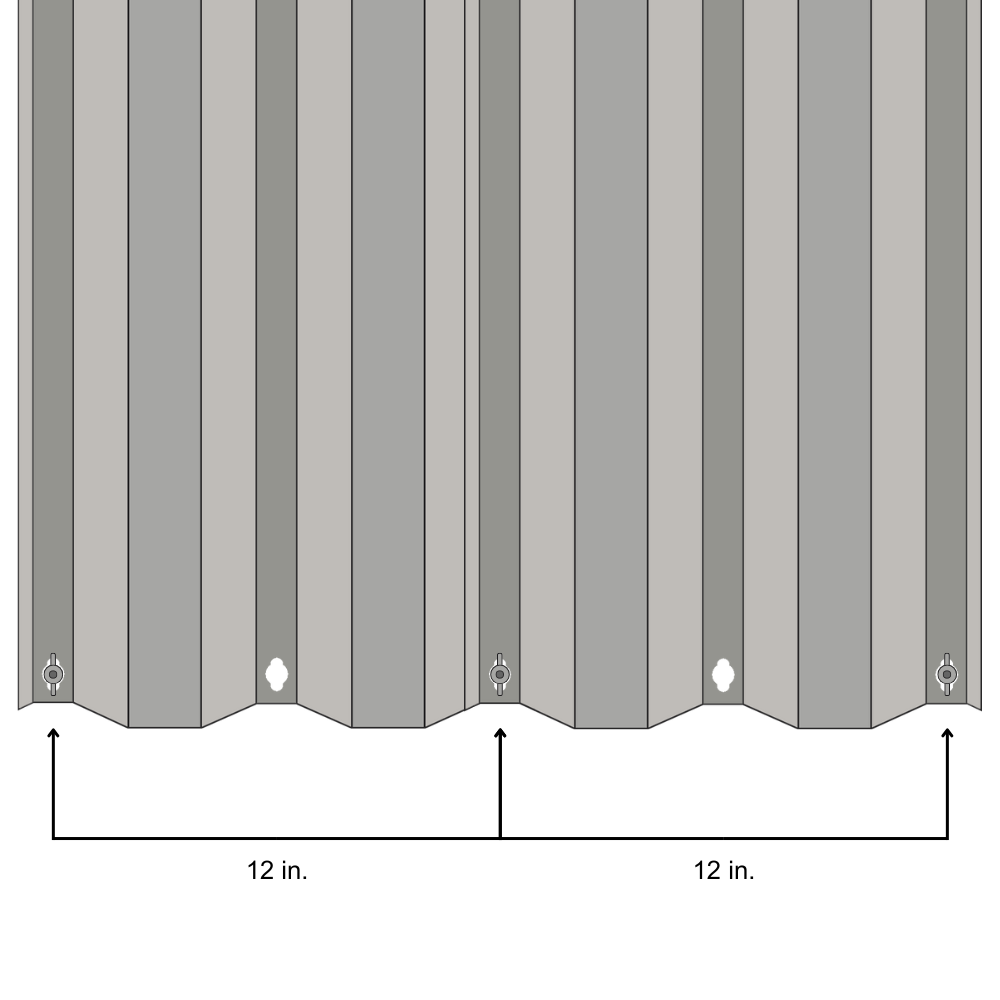

Florida Building Code/Non-BOCA

Requires a minimum of one hardware set every 12 inches, providing reliable panel attachment while maintaining standard code compliance for most applications.

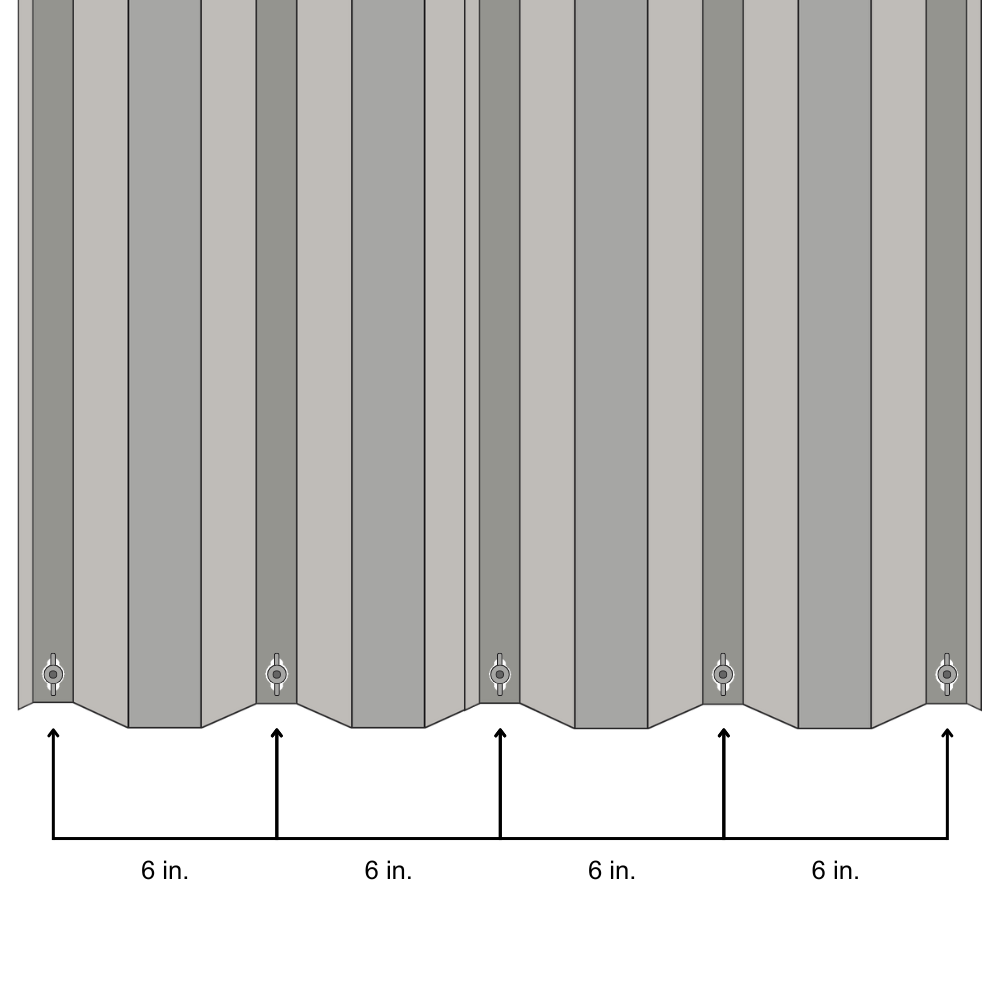

BOCA Standard

Requires one hardware set every 6 inches, offering tighter spacing for increased strength and improved performance in higher wind conditions.

INSTALLATION OVERVIEW

Standard Installation (H-Track + Reverse F-Track)

  1. Use the concrete screw anchor to mount the H-track above the door
  2. Install the machine screw anchor on the lower wall/concrete section
  3. Position the reverse F-track and secure it using the sidewalk bolt
  4. Slide square head track bolts into the F-track
  5. After placing the hurricane panel, secure everything using the wing nut

Installation with Reverse Studded Angle (H-Track + Reverse Studded Angle)

  1. Install H-track using the concrete screw anchor (top of door)
  2. Install machine screw anchor at bottom wall/concrete section
  3. Secure reverse F-track using sidewalk bolt
  4. Since the BERTHA plate includes pre-installed bolts, square head track bolts are not required
  5. Place hurricane panel and secure using wing nut
FEATURES

  • Designed for BOCA and non-BOCA hurricane shutter systems
  • Compatible with door vertical hurricane panel installations
  • Supports both standard track systems and BERTHA Reverse Studded Angle setups
  • Secure multi-point fastening system for hurricane protection
  • Heavy-duty hardware designed for concrete and masonry mounting
  • Flexible installation method depending on track configuration
  • Allows for quick removal and reinstallation of panels
  • Engineered for high-wind resistance applications
SPECIFICATIONS

  • Product Type: Hurricane shutter & panel door installation hardware set
  • Application: Vertical door panel mounting system
  • Mounting Surfaces: Concrete, masonry, structural wall
  • Compatibility: H-track, reverse F-track, BERTHA Reverse Studded Angle
  • Use Case: Hurricane shutter panel securing system

Code Spacing Requirements:

  • Florida Building Code (Non-BOCA): Minimum hardware set every 12 inches
  • BOCA Standard: Hardware set every 6 inches
HOW TO ORDER

Florida Building Code Formula (Non-BOCA):

  • Count full + half panels
  • Add 1
  • Formula: (Number of panels) + 1 = Quantity needed

BOCA Standard Formula:

  • Count full panels × 2
  • Add half panels
  • Add 1
  • Formula: (Full panels × 2) + (Half panels) + 1 = Quantity needed

Optional Reinforcement Upgrade:

For increased strength, you may choose to double up hardware sets at both ends of each window for additional anchoring security.

INCLUDED

  • (1) Concrete screw anchor
  • (1) Machine screw anchor
  • (1) Sidewalk bolt
  • (1) Square head track bolt
  • (1) Wing nut
PRODUCT MEDIA


QB ID: NON-BOCA_Door_V

Reviews

Write A Review

FAQ

1.When should I start preparing?


Start now
—don’t wait for a storm.The biggest mistake people make is waiting until a storm is already on the radar—by then, supplies are limited and shipping delays are common.

2.How long do power outages usually last?

  • Minor storms: hours to 1–2 days

  • Major hurricanes: several days to weeks




  • Power restoration depends on:
  • Damage severity

  • Road access

  • Priority areas (hospitals first)
  • 3.What is the difference between BOCA vs Non-BOCA?

    "BOCA" refers to the older Building Officials and Code Administrators code that many jurisdictions used before Florida consolidated everything into the statewide Florida Building Code (FBC) in 2002. BOCA vs. Non-BOCA refers primarily to the spacing and quantity of mounting hardware.

    • BOCA: Fasteners/hardware sets are spaced no more than 6 inches apart. This uses roughly twice as much hardware and provides more attachment points.
    • Non-BOCA / Florida Building Code option: Hardware sets may be spaced up to 12 inches apart, so fewer sets are required.

    4.What is hurricane season and when does it occur?

    Hurricane season is the time of year when tropical storms and hurricanes are most likely to form and hit the U.S. It typically runs from June 1 through November 30, with peak activity from August to October.

    5.How far inland can hurricanes cause damage?

    Hurricanes can cause wind and flooding damage hundreds of miles inland.

    6.How do hurricanes form?

    Hurricanes form when warm ocean water, moist air, and low wind shear combine to create a rotating storm system that strengthens over time.

    7.What is the difference between a tropical storm and a hurricane?

    A tropical storm has winds between 39–73 mph, while a hurricane has winds of 74 mph or higher.

    8.What is the Saffir-Simpson Hurricane Scale?

    It’s a classification system (Category 1–5) based on wind speed used to estimate potential damage.

    9.What is the eye of a hurricane?

    The eye is the calm center of the storm, surrounded by the most dangerous winds in the eyewall.

    10.What supplies sell out fastest before a hurricane?

    Most common shortages include: non-perishable food, water, batteries, generators, shutters, plywood, screws, and fuel.
